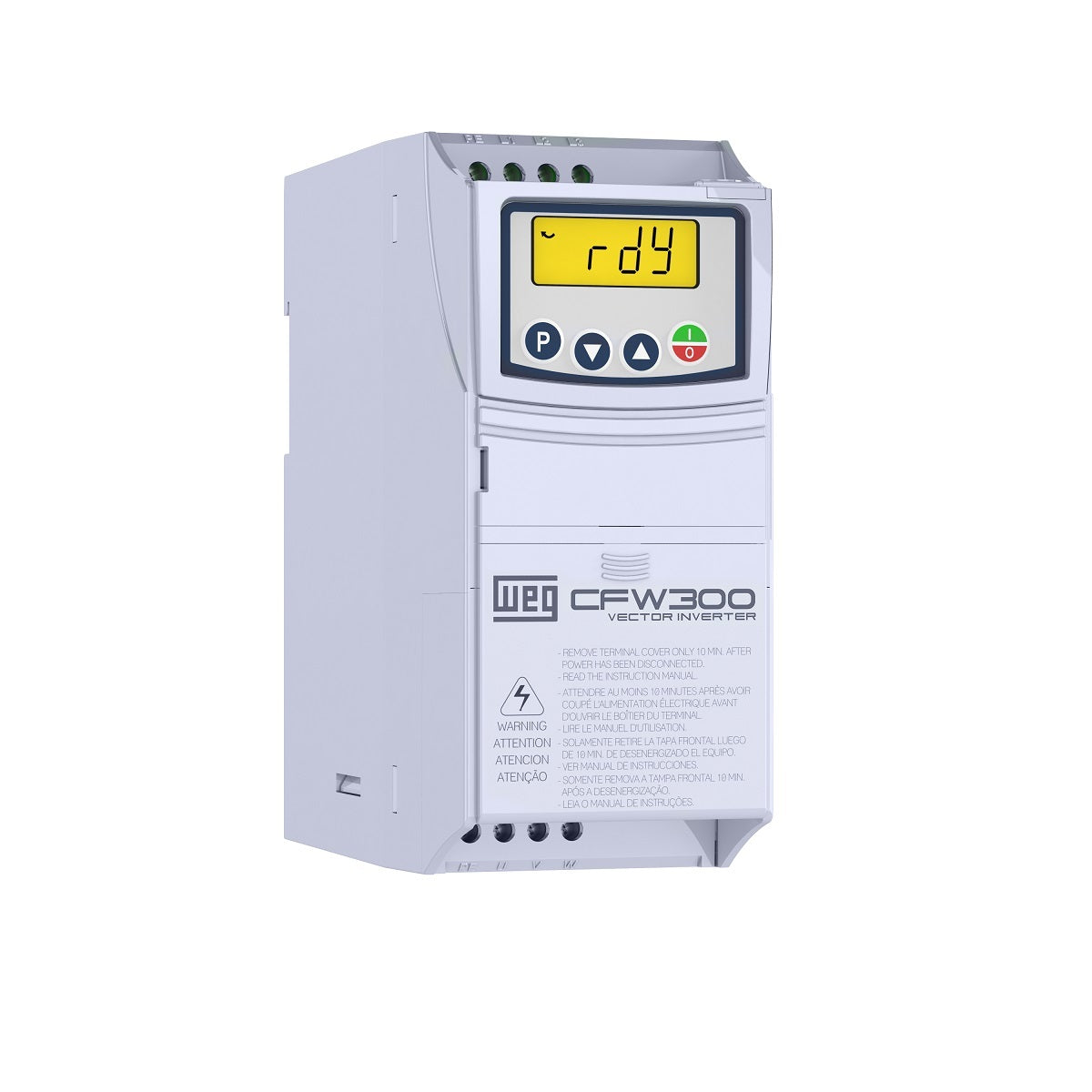

WEG CFW300A07P3S2NB20 Variable Frequency Drive
WEG CFW300A07P3S2NB20 Variable Frequency Drive
A mini-format variable speed drive from the CFW300 line, the CFW300A07P3S2NB20 is ordered from WEG under material number 13059418. Headline ratings: power supply 200-240 V; input phases Single-phase; rated current (ND) 7.3.
CFW300 mini drives are used on small machines and compact equipment where there is little room for a drive but a motor still needs variable speed control. On machines and equipment where a three-phase induction motor calls for precise control and simple operation, the CFW300 variable speed drive delivers high performance from a compact unit. Installation is contactor-style, and the drive offers either scalar control (V/F) or WEG vector control (VVW), an onboard operating interface (HMI), SoftPLC and free WPS programming software. Plug-in accessories extend its functions as needed, making it a flexible, highly cost-effective choice.
Specifications: WEG CFW300A07P3S2NB20
| Control method - induction motor | V/f (escalar) and VVW |
|---|---|
| Rated efficiency | ≥ 97% |
| Link Inductor | No |
| Conformal Coating | 3C2 (IEC 60721-3-3:2002) |
| SoftPLC | Yes, incorporated |
| Temperature | 0 °C to 50 °C |
| USB port | Yes, by CFW300-CUSB |
| Memory card | Not included in the product |
| I/O standard | 4 x DI;1 relé NA/NF x DO;1 x AI;Somente com plug-in x AO. |
| Display | Numeric LCD |
| Power supply | 200-240 V |
| Input phases | Single-phase |
| Rated current (ND) | 7.3 |
| Identification | |
| Brand | WEG |
| Product type | Variable Frequency Drive |
| Series | CFW300 |
| Catalog number | CFW300A07P3S2NB20 |
| WEG material number | 13059418 |
| WEG product group | Drives > Variable Speed Drives > Micro and Mini Drives > Variable Speed Drive CFW300 |
Delta Automation supplies the WEG CFW300A07P3S2NB20 as a new unit. Use the quote request button for current pricing, stock position and lead time.
