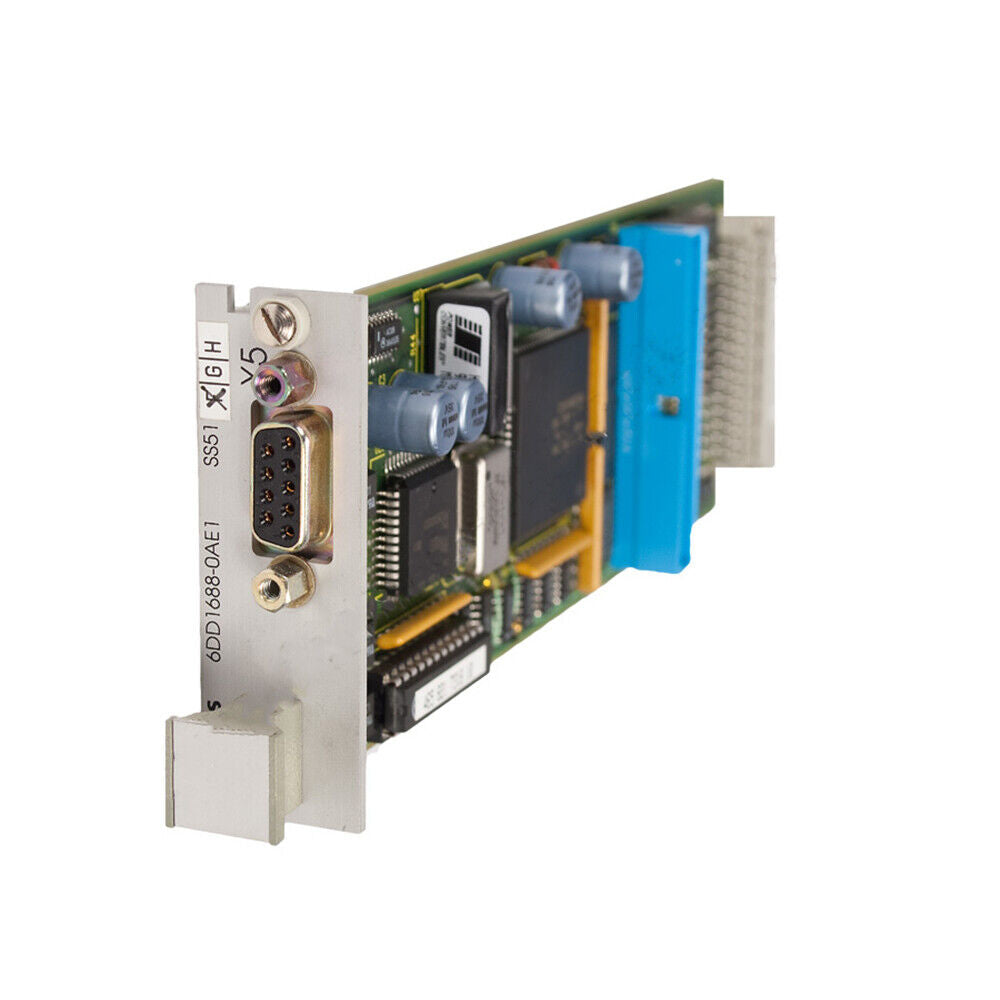

Siemens 6DD1688-0AE1

The Siemens part number 6DD1688-0AE1 is an essential programmable logic controller (PLC) digital input module designed for use in industrial automation, particularly in manufacturing and process control applications. This module supports up to 16 digital inputs, making it adaptable for various inputs such as switches and push buttons. Operating efficiently within a temperature range of 0°C to 60°C, it boasts a compact design, measuring approximately 12 cm x 4 cm x 2.5 cm, ensuring it fits seamlessly into control cabinets. Equipped with a diagnostic system, the 6DD1688-0AE1 alerts operators to any errors or malfunctions via alarm codes displayed on the SIMATIC HMI, allowing for swift troubleshooting. The user manual provides comprehensive guidance on installation, configuration, and programming using Siemens’ SIMATIC STEP 7 software, empowering technicians to develop programs that effectively integrate the module's digital inputs with other system components. With detailed troubleshooting procedures and clear installation steps, the 6DD1688-0AE1 is a robust solution for enhancing operational efficiency in industrial settings.
