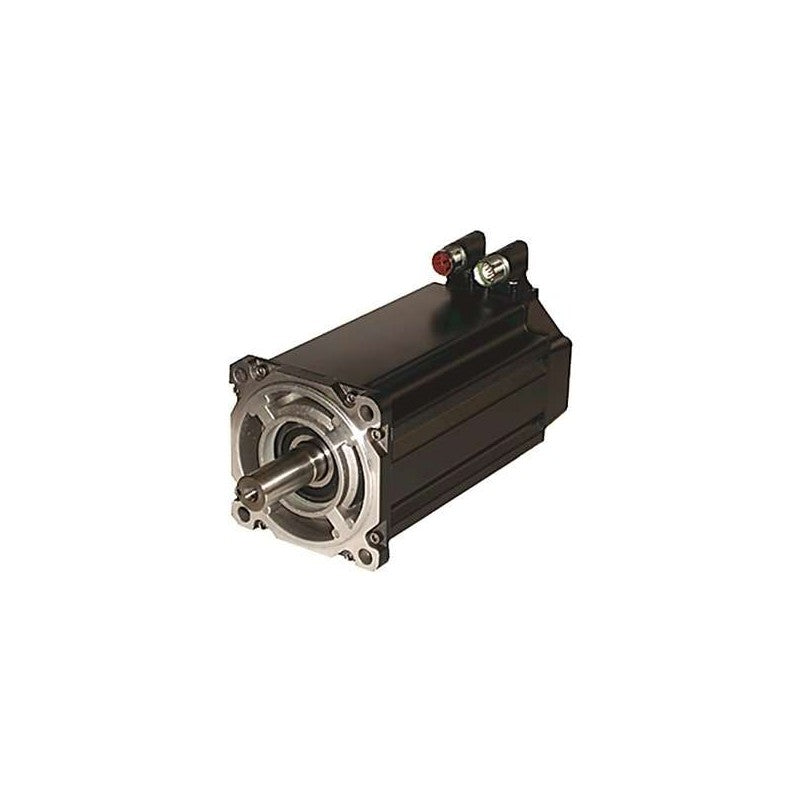

Allen-Bradley MPL-B4530F-MJ72AA

The Allen-Bradley MPL-B4530F-MJ72AA servo motor exemplifies versatility and efficiency, making it an ideal choice for a range of industrial applications. This premium permanent magnet rotary motor operates efficiently on both 200 Volts AC and 400 Volts AC, delivering 2.1 kilowatts of power with a remarkable maximum speed of 3000 rpm. Designed with low inertia, it supports advanced control options and is equipped with a high-resolution 1024 sin/cos absolute multi-turn encoder using Hiperface protocol for precise feedback. The motor's robust performance includes a continuous stall current of 7 Amps and a peak stall current of 21 Amps, ensuring reliable operation under varying conditions. Additional features include a rotatable DIN connector and an IEC metric flange, facilitating seamless integration into existing systems while maintaining exceptional temperature tolerance for both operation and storage. The design does not incorporate a shaft seal or brake, underscoring its suitability for straightforward installation in diverse industrial environments.
