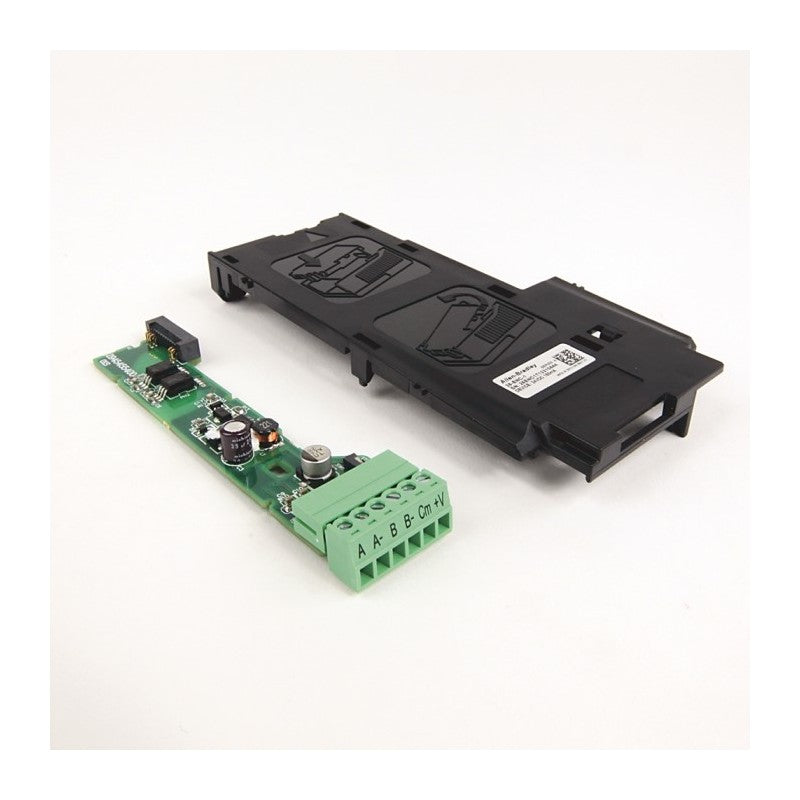

Allen-Bradley 25-ENC-1

The Allen-Bradley 25-ENC-1 encoder is engineered for high-performance applications, particularly with the PowerFlex 525 adjustable frequency AC drive. This quadrature incremental encoder is versatile, capable of sourcing from either 5 or 12 Volts while accepting inputs of 5, 12, or 24 Volts. It supports both single-ended and differential input configurations, enhancing the capabilities of the PowerFlex 525 by enabling closed-loop PM control and precise positioning of motors. With options for internal 12VDC power supply or external sourcing, installation is made flexible. Additionally, integrated DIP switches facilitate easy voltage source selection, and it accommodates wire sizes from 0.08 mm² to 2.08 mm², ensuring a streamlined setup for a variety of applications.
