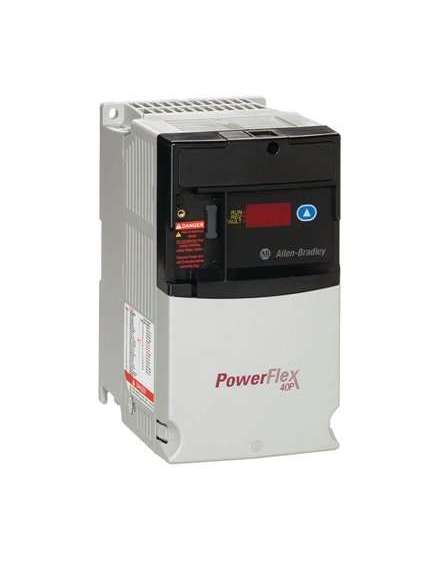

Allen-Bradley 22D-E1P7H204

The Allen-Bradley 22D-E1P7H204 drive delivers exceptional versatility in packaging solutions, allowing easy integration into a NEMA 4/IP66 enclosure, or installation with flange or plate drives that reduce the overall enclosure size by 75%. With its innovative DIN rail and panel mounting options, space-saving capabilities, and the ability to operate in ambient temperatures up to 40 degrees Celsius, this drive is designed for efficiency. External filters are available to meet stringent B EMC, Class A, and EN55011 standards, ensuring compliance without compromising performance. Control is simplified through various options, such as an external HMI, a PC programming tool, and an integrated DSI connection, which enhances user interaction with its integral reset button and visual feedback from four digital display LEDs alongside ten additional status indicators. The drive supports seamless connectivity via a serial converter module and comes equipped with a NEMA Type 1 handheld LCD keypad and a NEMA Type 4X for expanded control flexibility. Monitoring and adjusting the drive is user-friendly, thanks to the televised regulator bar, which facilitates operations like starting, stopping, and speed adjustments, as well as parameter management. Offering both offline and online programming options, the 22D-E1P7H204 features an integrated HTML help system, dialog-based and grid parameter editing, and StepLogic setup wizards, streamlining the programming process. With an adjustable PWM frequency of up to 16 kHz, this drive operates quietly while ensuring reliable speed control and high rotational performance through its advanced sensorless vector control technology.
