Allen-Bradley 22D-D1P4H204

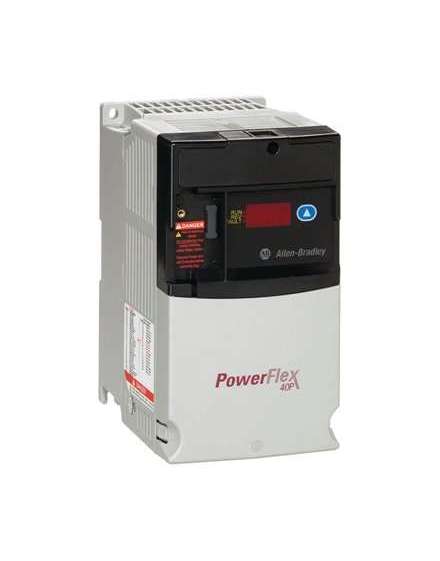

The Allen-Bradley 22D-D1P4H204 PowerFlex 40P Adjustable Frequency AC Drive is designed for optimal control of 3-phase induction motors, delivering exceptional speed regulation for closed applications. With robust overload protection featuring capacities up to 150% for 60 seconds and 200% for 3 seconds, this drive ensures dependable performance. It operates efficiently within a voltage range of 380 to 480V AC and supports a wide input range of 342 to 528V AC, with an output current rating of 1.4A and a power output of 0.4kW. Utilizing advanced V/Hz and Sensorless Vector control methods, it achieves impressive speed accuracy of ±1% across an 80:1 range in open-loop settings and ±0.05% with encoder feedback in a 20:1 range. Designed for seamless integration, it includes seven digital inputs, various analog options, and an RS-485 communication port for straightforward programming. Built to endure diverse environmental conditions, this drive functions effectively between -10 and 50 °C and remains reliable in humidity levels of 5–95% non-condensing.
