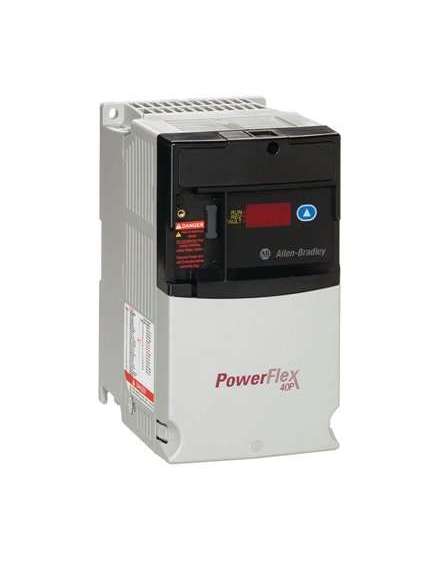

Allen-Bradley 22D-B5P0F104

The Allen-Bradley 22D-B5P0F104, part of the renowned PowerFlex 40P series, delivers an effective and flexible solution for managing three-phase induction motors. This adjustable frequency AC drive features a 1 HP rating and a current capacity of 5A, ensuring reliable performance across a voltage range of 180 to 264 Volts AC. With its IP20 NEMA Type 1 flange-mount enclosure, it is designed for compatibility with both open and closed-loop applications. The incorporation of isolated gate bipolar transistor technology enhances efficiency and performance, while several control methods including Sinusoidal PWM and Sensorless Vector Control provide versatility. Safety is paramount, with built-in protections against ground faults, short-circuits, and overvoltage. Additionally, an integral RS485 communication interface simplifies PC programming, complemented by seven digital inputs and two analog inputs for precise speed control. Operating effectively in a range of -10 to 50 °C, this convection-cooled drive is compactly sized at 145 x 210 x 119.3 mm, making it an excellent choice for various environments.
