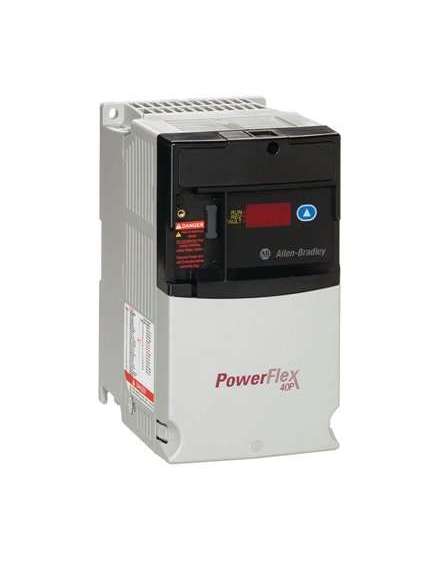

Allen-Bradley 22D-B024H204

The Allen-Bradley 22D-B024H204 PowerFlex 40P Adjustable Frequency AC Drive is designed for exceptional motor control in demanding applications that require closed-loop functionality and safety features, including the innovative category 3 Safe-off. With a three-phase voltage range of 200 to 240 Volts AC and an output current of 24 Amps, it delivers a robust power rating of 5.5 kW (7.5 HP) while ensuring efficiency. This drive is equipped with advanced digital control capabilities, allowing programmable frequency settings from 0 to 500 Hertz along with customizable stop modes, acceleration, and deceleration profiles. Built for longevity, it offers Class 10 Electronic Motor Overload Protection and various control input options, complemented by multi-drop network connectivity via an RS-485 serial communication port. Housed in an IP20-rated enclosure, the PowerFlex 40P withstands temperature variations from 14 to 122 degrees Fahrenheit and performs reliably at altitudes up to 1000 meters without derating.
