Allen-Bradley 22D-B012F104

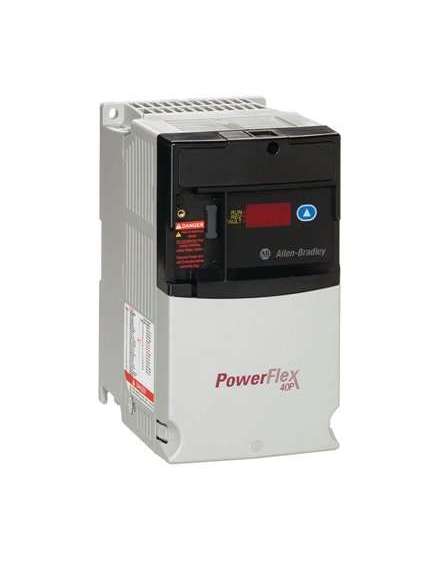

The Allen-Bradley 22D-B012F104, a versatile PowerFlex 40P AC drive, operates efficiently within 208 to 240 Volts AC, making it ideal for three-phase motor speed control at a power rating of 3 horsepower (2.2 kW) and delivering up to 12 Amps. Featuring advanced control methods, including Sinusoidal PWM, Volts per Hertz, and Sensorless Vector control, this model supports a seamless configuration and commissioning process. Users will benefit from its integrated PID control and auto-tune capabilities, which optimize performance based on specific motor characteristics. The drive is equipped with a clear four-digit LCD display, three LED indicators for operational status, and built-in electronic overload protection to enhance motor lifespan, alongside added safeguards like ground fault protection and 6kV transient protection. With a compact "B" frame size of 125 x 204 x 113 millimeters (4.92 x 8.03 x 4.45 inches) and an IP20 rating, it is designed for flange mounting in ambient temperatures ranging from -10 to 50 degrees Celsius (14 to 122 degrees Fahrenheit).
