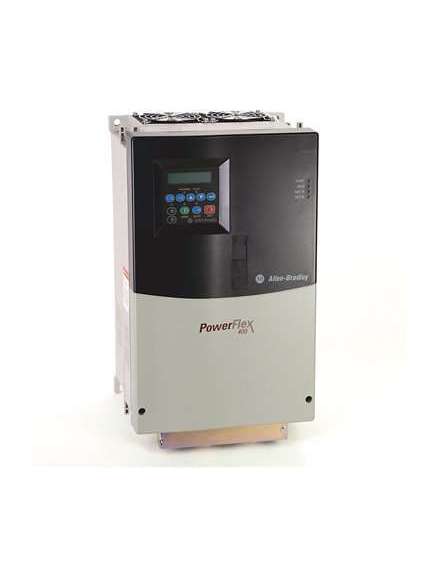

Allen-Bradley 22C-B090A103

The Allen-Bradley 22C-B090A103 PowerFlex 400 AC Adjustable Frequency Drive is designed to optimize torque and speed management, specifically for fan and pump applications. With an advanced PID controller, it accurately regulates output frequency, significantly enhancing process efficiency. This drive operates at 240V AC, delivering 90A of output current and supporting a power rating of 22kW (30HP). It accommodates an input voltage range of 180V AC to 265V AC and functions effectively within a frequency range of 48 to 62Hz. With an impressive operational efficiency of 97.5% and a power factor of 0.98, it also includes advanced features such as Class 10 motor overload protection and phase-to-ground protection. The versatile control system provides ±1% base speed regulation over a 60:1 speed range, using 7 digital inputs and DIP-selectable analog inputs. Housed in a NEMA Type 1 enclosure, this drive operates in a temperature range of -10 to 45 °C, ensuring durability and reliability in diverse environments.
