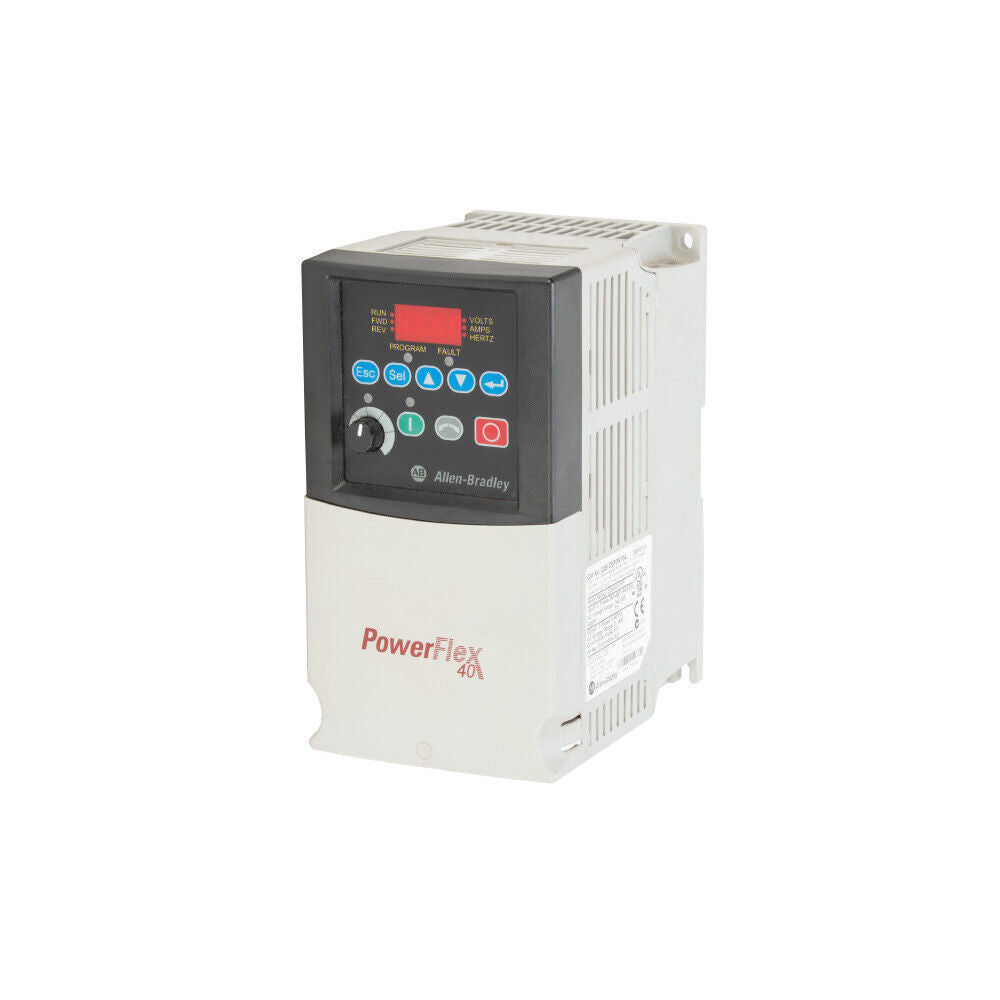

Allen-Bradley 22B-D6P0N104

The Allen-Bradley 22B-D6P0N104, part of the PowerFlex 40 series, is a highly effective AC drive designed for precise motor control in demanding industrial environments, including applications such as fans, pumps, and conveyors. Its advanced sensorless vector control technology ensures exceptional low-speed torque, while Volts/Hertz control maintains consistent speed across fluctuating load conditions. This compact drive operates on a three-phase input voltage range of 342-528 V AC, delivering outputs of 6.0 Amps at 2.2 kW (3.0 HP). Housed in an IP20-rated, NEMA/UL open type enclosure, it features an integrated IGBT braking system, a user-friendly fixed keypad with LCD display, and an RS485 communication port for easy connectivity to control networks. The 22B-D6P0N104 also includes essential motor protection capabilities, such as Class 10 overload specifications and ground fault protection, ensuring reliability and safety in ungrounded systems. CE-marked and certified with UL, CUL, EAC, and KCC approvals, this drive meets rigorous global standards for performance and safety.
