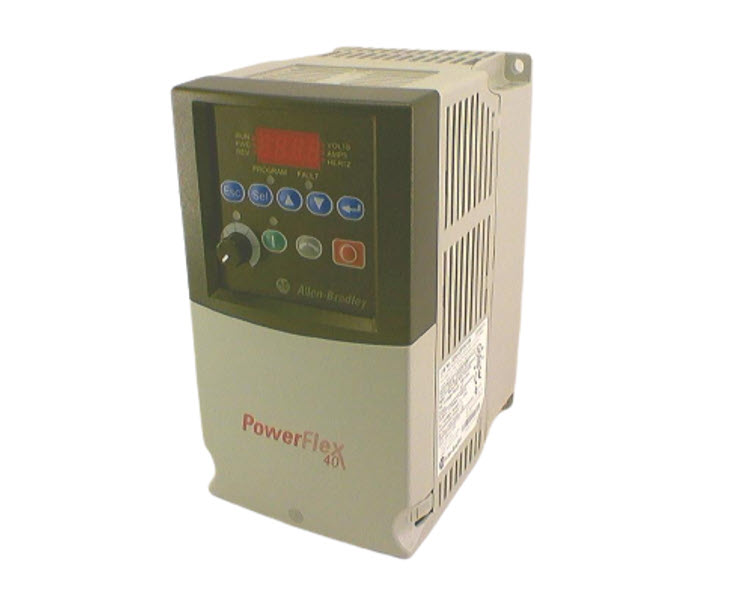

Allen-Bradley 22B-A2P3N104

The Allen-Bradley 22B-A2P3N104 PowerFlex 40 Adjustable Frequency AC Drive offers advanced motor control in a compact, single-phase design, making it ideal for a variety of industrial applications. Key features include panel mounting, effective zero stacking, and integrated PID control, all of which contribute to enhanced operational efficiency. This unit is equipped with a removable MOV for transient protection, an integral DC brake transistor, and an adjustable 24V DC sink/source control. It can handle overloads of up to 150% for 1 minute and 200% for 3 seconds, ensuring reliability even in demanding situations. Operating at 240V AC and providing up to 0.4 kW (0.5 HP) at 2.3 A, it supports an output frequency range of 0 to 400 Hz and a carrier frequency between 2 to 16 kHz. The comprehensive sensorless vector control system guarantees accurate speed regulation, while the Class 10 electronic motor protection features an i² t Algorithm to safeguard against issues. Designed for robustness and flexibility, this drive allows for programmable acceleration and deceleration times, as well as easy configuration through its digital and analog input options, making it a powerful solution for modern industrial environments.
