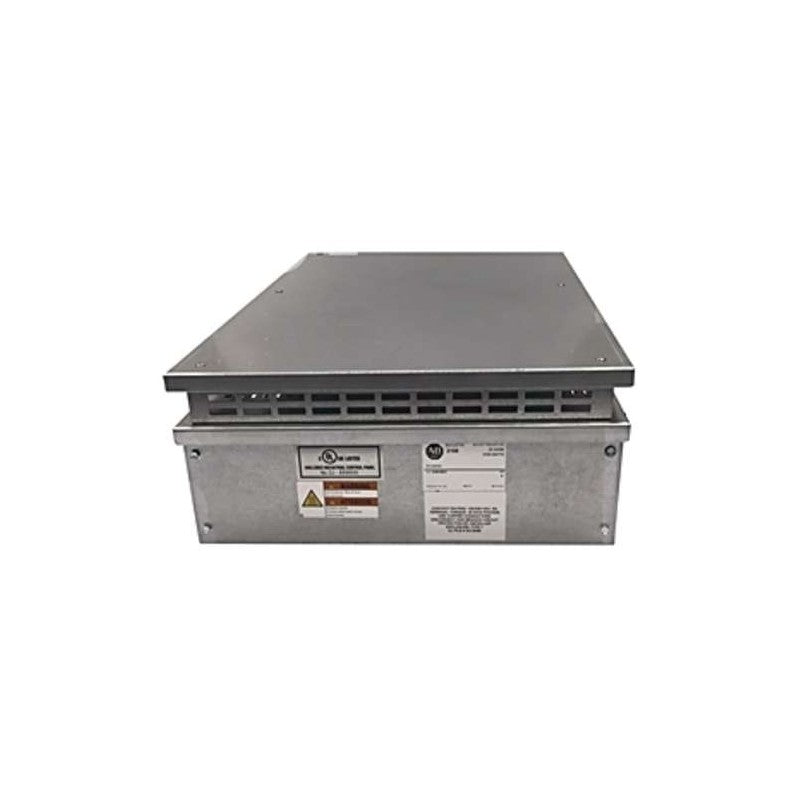

Allen-Bradley 2198-R031

The Allen-Bradley 2198-R031 is an advanced passive shunt module from the Kinetix 5700 series, ideal for applications requiring additional shunt capacity beyond the limits of standard DC-bus power supplies. Built with resilient resistor coils in a compact, enclosed design, this module weighs 16.8 kg and features a resistance of 33 Ohms along with a continuous power rating of 3100 W. Its removable cover, secured by 5/16 Hex screws, facilitates easy maintenance while ensuring compliance with necessary clearances. Designed for optimal mounting that minimizes electromagnetic interference, this unit must be installed externally with sufficient ventilation. The 2198-R031 not only enhances operational stability but also guarantees reliable performance in demanding industrial environments.
