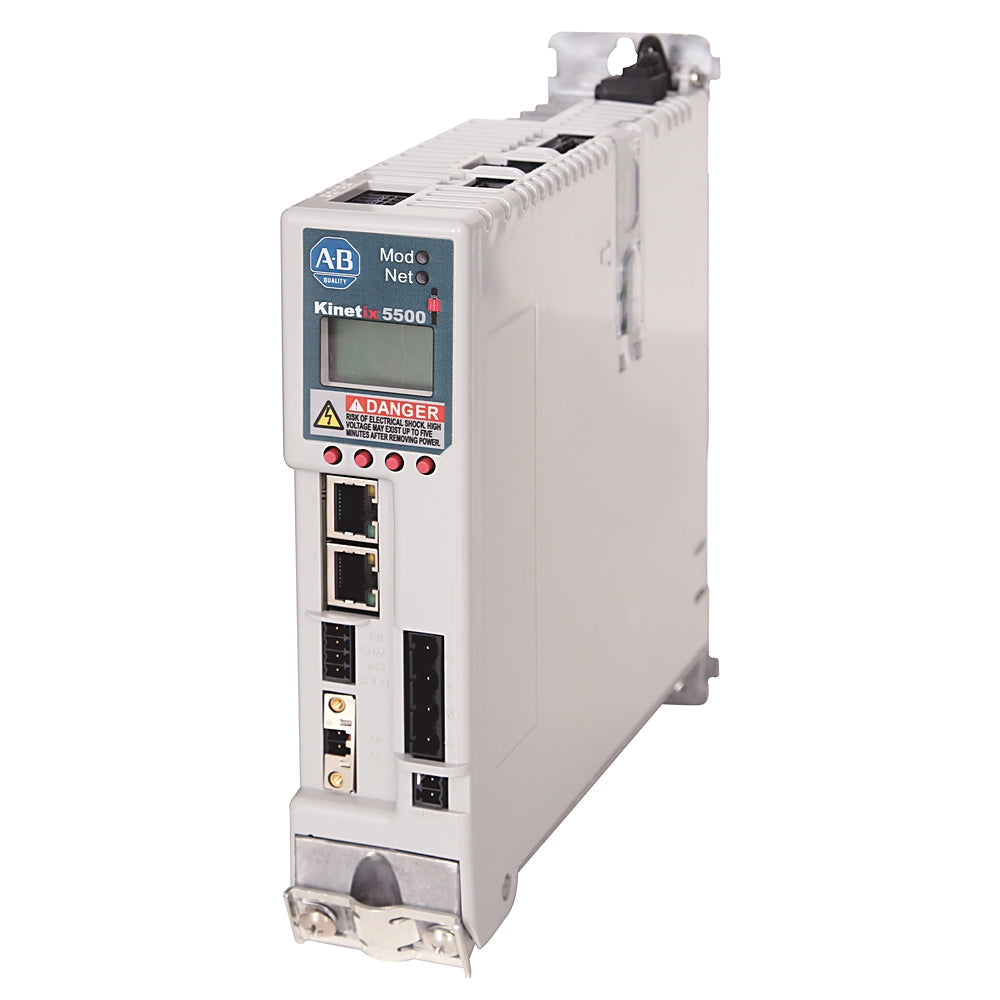

Allen-Bradley 2198-H015-ERS2

The 2198-H015-ERS2 Allen-Bradley Kinetix 5500 is a state-of-the-art Ethernet I/P Digital Servo Drive crafted to deliver precise motion and position control for a wide range of applications. Seamlessly integrating with CompactLogix 5370 controllers, this drive excels at managing complex motion tasks, thanks to its advanced capabilities. It operates flexibly across input voltages of 195-264V or 324-528V (3-phase), providing a continuous output current of 13.0 A and peak currents of 32.5 A, translating to output power between 4.0 kW and 8.3 kW. With dual Ethernet ports supporting sophisticated topologies such as Linear, Star, and Device Level Ring, it also includes Safe Torque-Off functionality for enhanced safety. Additional features such as an internal shunt resistor and options for energy dissipation further enhance performance, while the drive's compact design facilitates zero-stack installation and efficient DC bus-sharing, making it an ideal choice for various motor and actuator needs.
