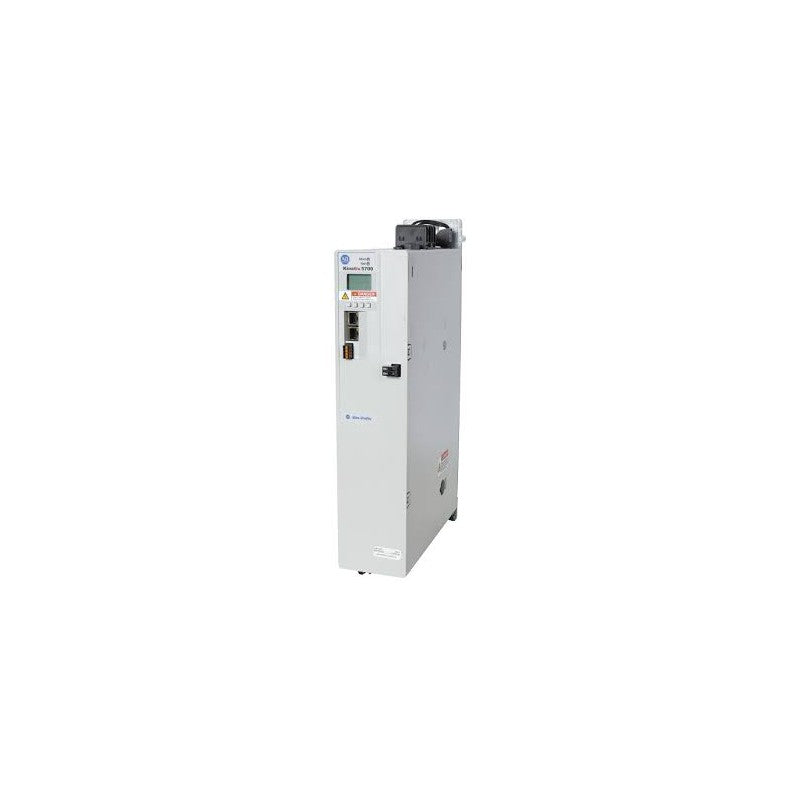

Allen-Bradley 2198-DCBUSCOND-RP312

The Allen-Bradley Kinetix 5700 DC Bus Conditioner Module, model 2198-DCBUSCOND-RP312, is engineered to enhance the performance of inverter systems by extending the DC-bus voltage to additional inverter clusters, particularly in applications with fully utilized bus supplies. This innovative module mitigates voltage stress on insulation components, especially beneficial in scenarios featuring long cable lengths. With dimensions of 300 mm in length, 345 mm in width, and 358 mm in height, the module is compact yet powerful, weighing in at 253 grams. It is designed for seamless integration with a 2198-RPxxx regenerative-bus supply cluster when motor cable lengths exceed 400 meters. The Kinetix 5700 ensures reliable operation and is supported by comprehensive user manuals that detail configurations and installation protocols, making it an essential component for optimizing industrial automation systems.
