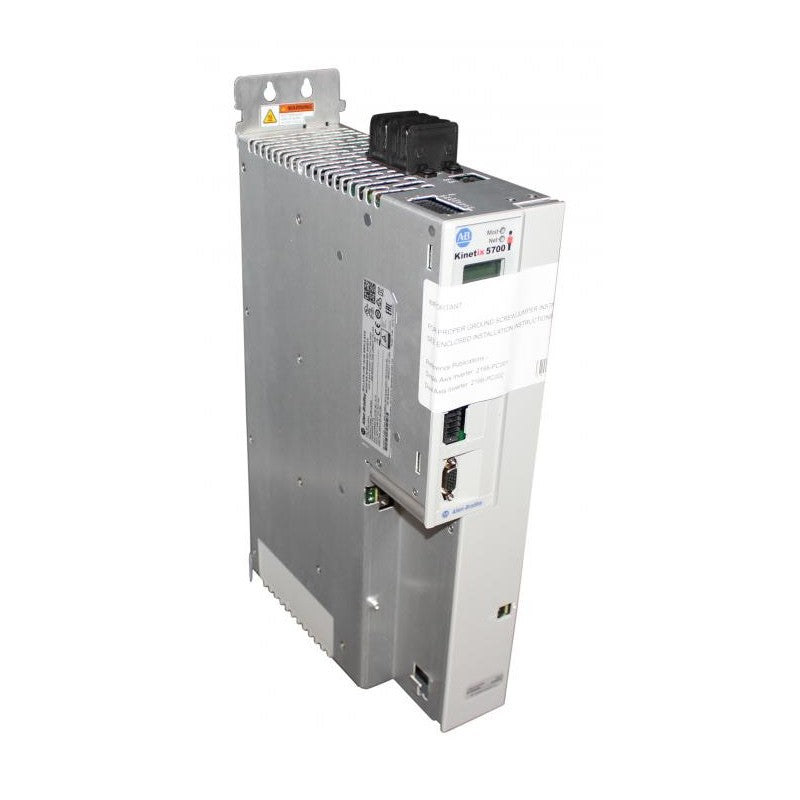

Allen-Bradley 2198-CAPMOD-DCBUS-IO

The Allen-Bradley 2198-CAPMOD-DCBUS-IO module serves as a pivotal extension for the Kinetix 5700 drive system, significantly enhancing its capabilities to support both DC-bus power supplies and regenerative bus supplies. This module is engineered to handle configurations with external bus currents of 104 Amps, and it can be expanded to accommodate up to 208 Amps, making it ideal for increasing DC-bus voltage across multiple inverter clusters. To optimize performance and adhere to safety standards, this unit requires a cooling clearance of 115 millimeters above and 100 millimeters below. Key features include a 55-millimeter DC bus link, two flexible bus bars, and an array of essential installation components, such as stud/lug covers, hex nuts, and spacers, which are crucial for ensuring safe assembly and operation.
