Allen-Bradley 2198-CAPMOD-1300

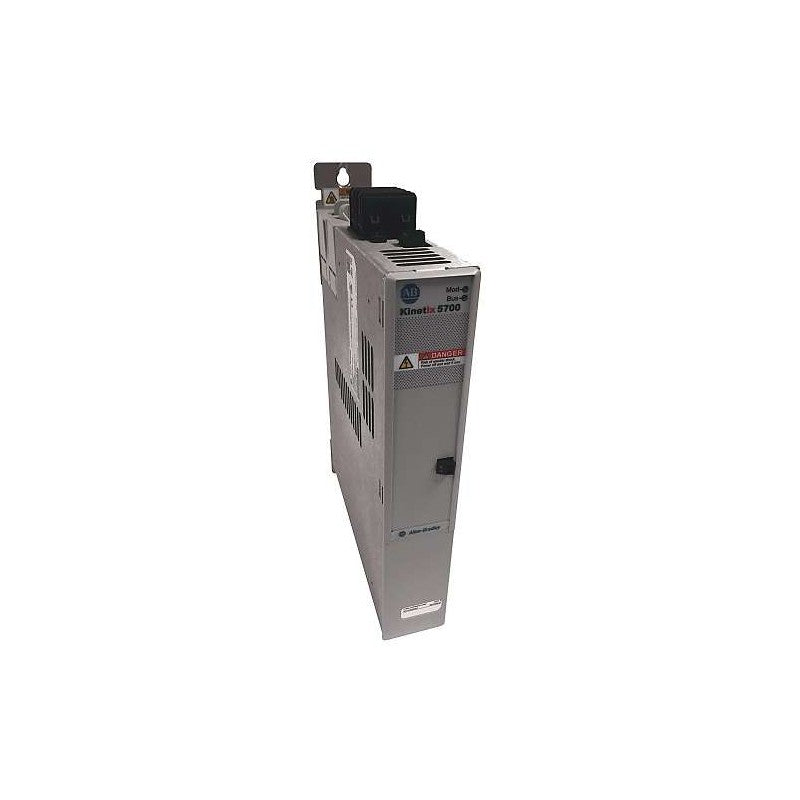

The Allen-Bradley 2198-CAPMOD-1300 capacitor module is an essential addition to the Kinetix 5500 series, delivering up to 1360 microfarads of capacitance to systems facing demands on their internal shunt capacity. This module is engineered to optimize the performance of applications that generate high regenerative energy, operating effectively on its own or in conjunction with an external shunt module from the 2097 series. It seamlessly integrates into shared-bus systems, specifically designed to work with drive configurations that share DC power, although it is not intended for AC-only setups. The "Zero Stacking" installation assures optimal connector spacing and adheres to the precise dimensional and clearance requirements of frame 2 drives, measuring 10.43 x 8.27 x 2.16 inches. Suitable for both 200 Volts and 400 Volts class drive systems, this module necessitates grounding with 12 AWG copper wire or a braided ground strap linked to a bonded cabinet ground bus, further enhancing its reliability in operational environments.
