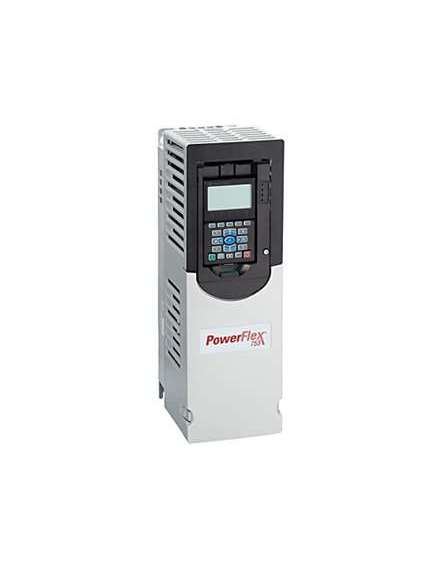

Allen-Bradley 20F11GD052AA0NNNNN

The Allen-Bradley 20F11GD052AA0NNNNN AC drive from the PowerFlex 753 series is designed to meet the demands of high-performance applications with a capacity of up to 270 kW or 400 Horsepower. Operating at 480 Volts AC, it provides a robust 52 Amps and 42 Horsepower at 460 Volts AC and 60 Hertz, ensuring powerful and efficient operation. This versatile drive is equipped for both open and closed loop control, allowing for precise management of torque and speed. With three available slots for optional cards, it can be customized to suit specific user requirements. The drive features a wide array of integrated I/O options, including analog and digital inputs, as well as relay and transistor outputs, with the addition of an optional LCD-based HMI for enhanced user interaction. Housed in a rugged IP54-rated NEMA/UL Type 12 enclosure, its compact dimensions of 571 x 300 x 220 millimeters and operational temperature range of 0 to 40 degrees Celsius make it ideal for various environments, while also ensuring compliance with protection standards for voltage variations.
