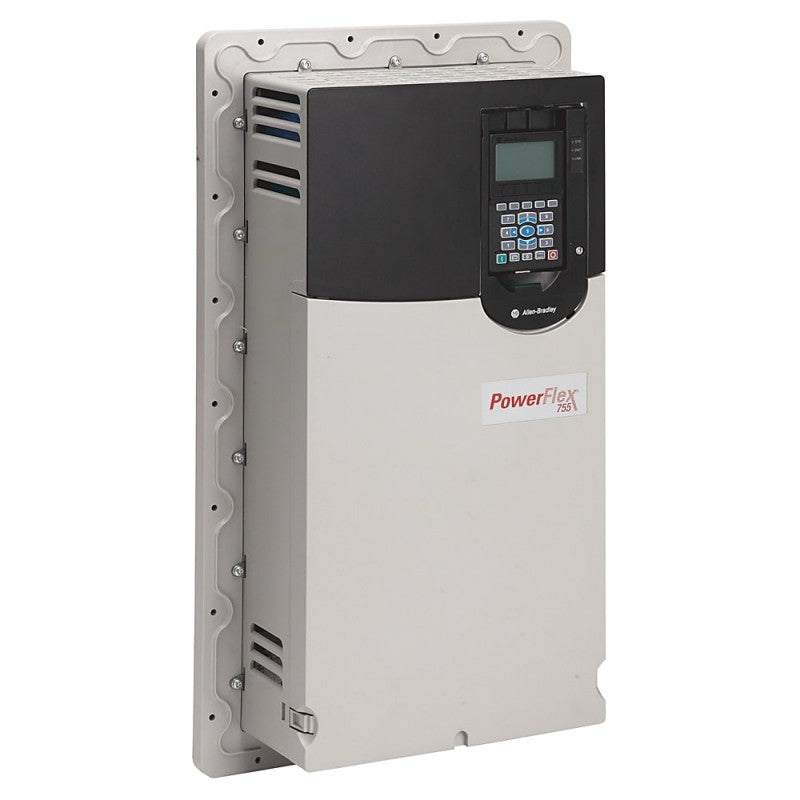

Allen-Bradley 20F11FD011AA0NNNNN

The Allen-Bradley 20F11FD011AA0NNNNN, part of the PowerFlex 753 series, is a high-performance AC drive optimized for rigorous industrial applications, delivering up to 400 horsepower. Designed to operate on a 3-phase 480 Volts AC power supply, it accommodates a voltage input range of 342 to 528 Volts AC and a frequency range of 47 to 63 Hertz. Enhanced safety features, such as Safe Speed Monitor and Safe Torque-Off, help minimize downtime while ensuring operational security. With 11 Amps and 7.5 Horsepower output capabilities in both standard and heavy-duty modes, the drive includes an integrated DC terminal for added convenience. Its robust NEMA / UL Type 4X / 12 enclosure supports efficient cooling, requiring 84.95 m³/hour of airflow, while maintaining a quiet operation at 63 dB. Measuring just 18.97 x 8.12 x 8.35 inches and weighing 20 pounds, it is an ideal choice for various industrial settings. The flexibility for expansion with optional modules, although lacking a built-in HMI, allows for customizable integration of additional I/O, safety, and communication interfaces.
