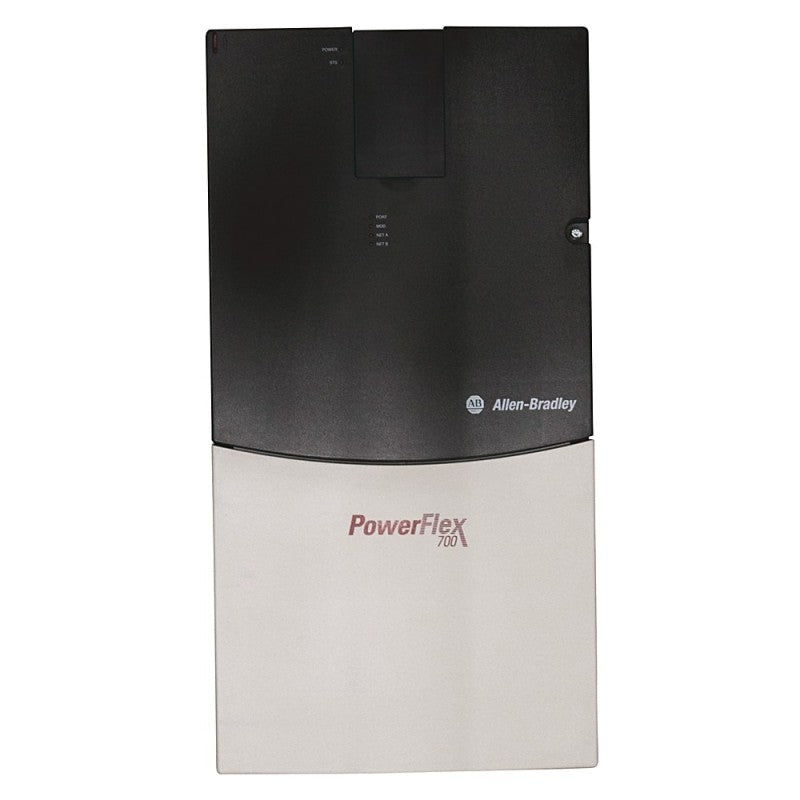

Allen-Bradley 20BD180A0AYNANC0

The Allen-Bradley PowerFlex 700 model 20BD180A0AYNANC0 is an advanced adjustable frequency AC drive meticulously engineered for precise control of three-phase induction motors. With a nominal current rating of 180 Amps, it provides a powerful output of 150 Horsepower at 480 Volts AC. This model accommodates an input voltage range of 432 to 528 Volts AC, ensuring versatility in various applications. Enhanced features include an internal dynamic brake transistor for smooth operation and field-removable Metal Oxide Varistors for effective transient protection. The drive operates with remarkable accuracy, boasting a power factor of 0.98 and circuit protection of up to 200,000 Amps, making it both efficient and safe. Its microprocessor temperature monitoring guarantees reliable performance across a operating temperature range of 0 to 50 degrees Celsius, and it effectively handles relative humidity levels from 5 to 95% non-condensing. Housed in a NEMA Type 1 enclosure, this AC drive is perfect for demanding variable speed management applications, offering a dynamic speed range of up to 120:1 while maintaining accuracy within ±0.01% of the set output frequency.
