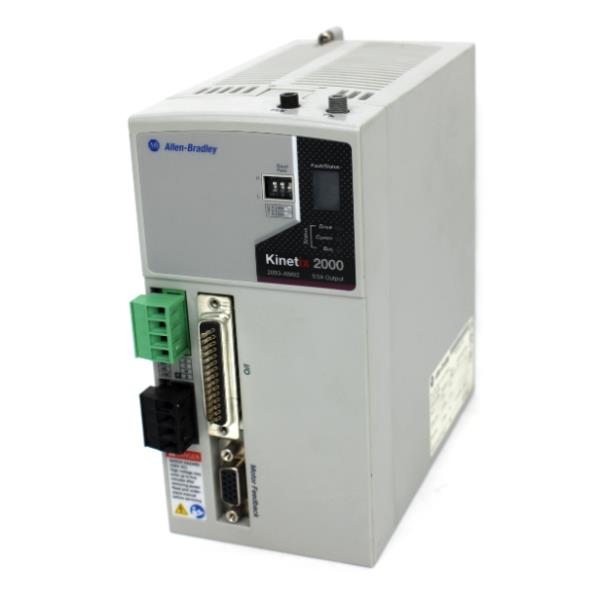

Allen-Bradley 2093-AM02

The 2093-AM02 is a vital element of the Kinetix 2000 multi-axis servo drive series, tailored for delivering exceptional Kinetix Integrated Motion solutions in sophisticated applications. This double-width Axis Module functions as a shared 230V DC bus power inverter and is effortlessly mounted on a Kinetix 2000 power rail, allowing for streamlined integration. It features quick-connect capabilities for motor power, feedback, and brake cables, enabling efficient connectivity with servo motors. With a remarkable bandwidth velocity loop of 500Hz and nominal input voltage of 325V DC, the 2093-AM02 achieves high performance and operational efficiency of 98%. It accommodates continuous current up to 9.5A and peak current of 28.5A, delivering a power output of 1.9 kW. Designed for resilience, it operates effectively in challenging environments, with a temperature range of 0 to 50 °C and can handle humidity levels of up to 95% non-condensing. Weighing in at 1.32 kg, its impressive shock and vibration resistance makes it suitable for dynamic industrial settings. The 2093-AM02 is your ideal solution for advanced motion control applications.
