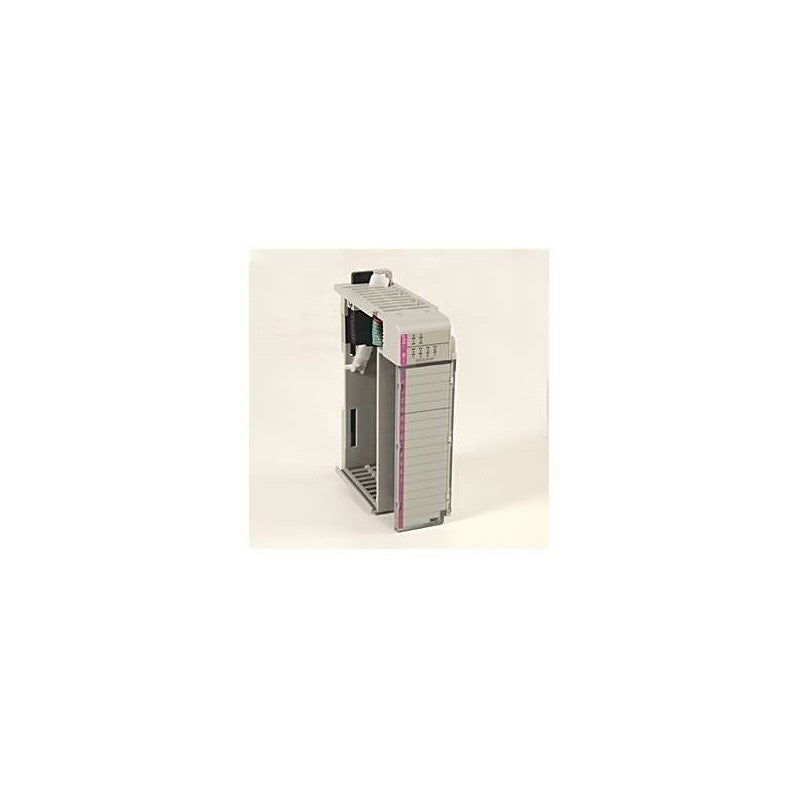

Allen-Bradley 1769-BOOLEAN

The Allen-Bradley 1769-BOOLEAN module offers exceptional versatility in a compact design, ideal for diverse automation applications. With its lightweight construction and dimensions of 3.34 x 4.65 x 1.38 inches, this open-type enclosure module supports both DIN-rail and panel mounting, making installation seamless. It operates on a 10-30V DC input signal and delivers a 20.4-26.4V DC output signal, featuring eight single-ended 24V DC inputs and four sourcing outputs. Its Boolean logic capabilities allow for four distinct operational modes—OR, AND, XOR, and NONE—providing tailored control options. The rapid closed loop time of just 1 microsecond ensures efficient performance, while robust isolation and dielectric withstand ratings enhance reliability. With a current draw of 220 mA at 5.1V, the 1769-BOOLEAN stands out as a fundamental component in precision-controlled automation systems, delivering both performance and dependability.
