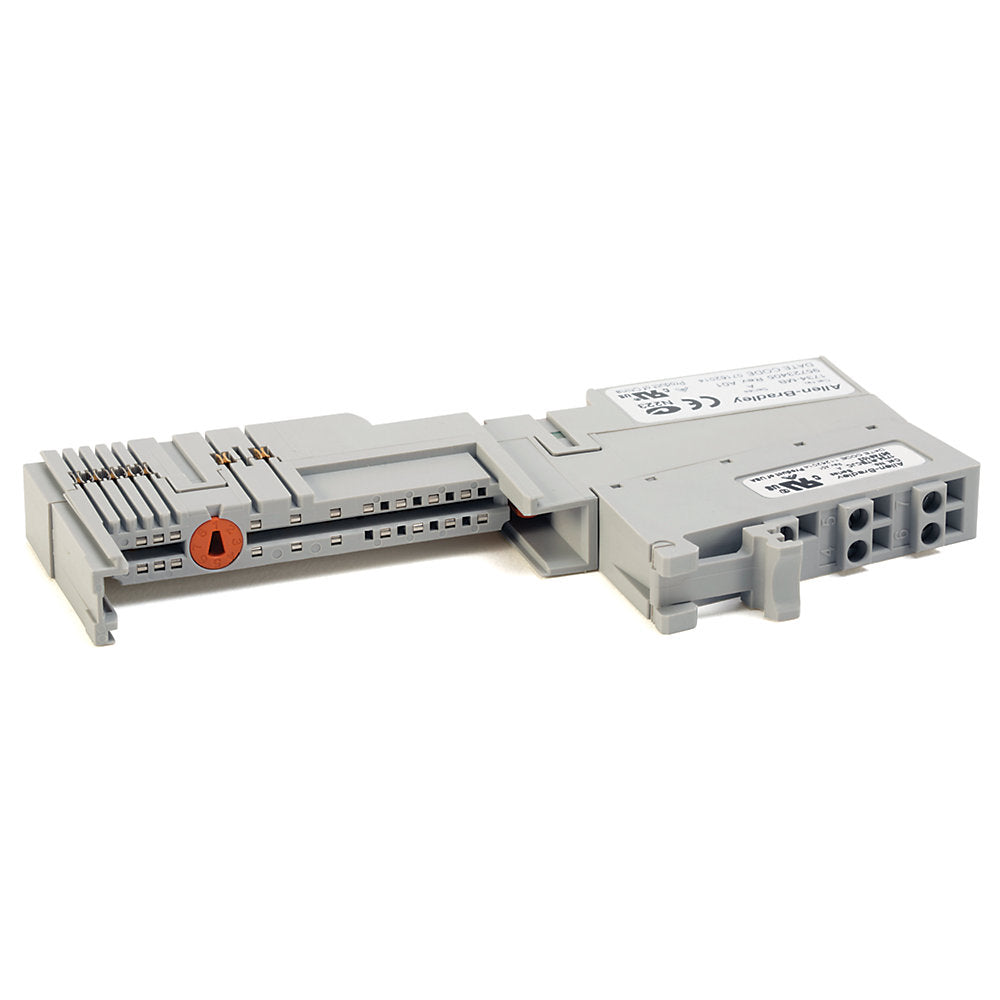

Allen-Bradley 1734-TBCJC

The 1734-TBCJC Cold Junction Compensation wiring base assembly is a key component of the Allen-Bradley POINT I/O system, engineered for optimal compatibility with the 1734-IT2I Thermocouple Input Module. This assembly simplifies thermocouple connections with its removable terminal block, featuring eight terminal locations, including a dedicated shield connection for enhanced performance. Compactly designed at 65 x 12 x 133.4 mm, it mounts effortlessly onto a DIN rail and accommodates a supply voltage of 28.8V DC along with 120/240V AC, supporting a maximum current of 10 Amperes. Weighing a mere 97.5 grams, the 1734-TBCJC guarantees reliable functionality and straightforward installation thanks to its innovative interlocking side pieces, mechanical keying, and secure DIN rail locking mechanism, making it indispensable for achieving precise cold-junction compensation in various applications.
