Allen-Bradley 1411-600-601

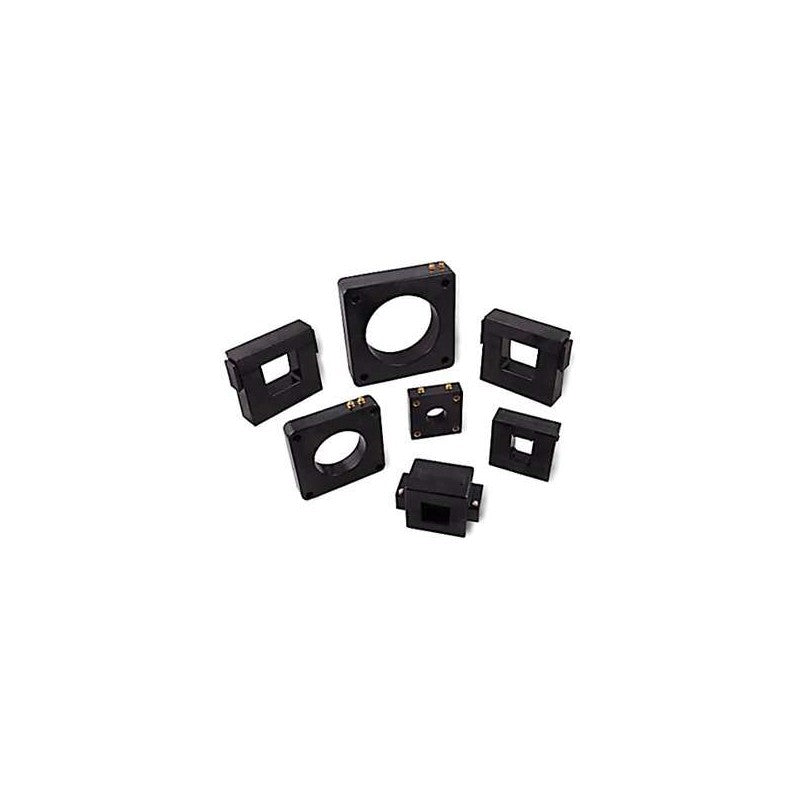

The 1411-600-601 is a robust low voltage window-type current transformer designed for diverse applications, including switch cubicles and high-voltage breakers. Compliant with the 600V class as per IEEE/ANSI C57.13 standards, this transformer can operate effectively in higher voltage environments, supporting circuits up to 38 kV in switch cubicles and reaching as high as 245 kV in high-voltage breaker, power transformer, or GIS applications. With a ratio of 600:5 and dimensions of 2.00 x 5.50 inches, its two-piece core design ensures efficient current measurement. This passive component requires no programming, making installation straightforward for trained electricians. Proper installation involves ensuring a fully insulated conductor and appropriate connection to secondary terminals before energizing the primary circuit. For guidance, a comprehensive installation manual is available, detailing all necessary procedures and safety precautions.
