Allen-Bradley 1326AB-B730E-M2K7L

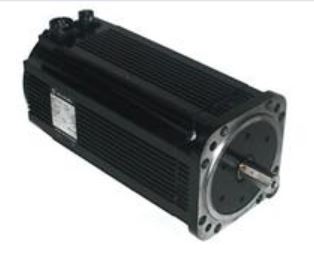

The Allen-Bradley 1326AB-B730E-M2K7L stands out as a robust brushless AC servo motor crafted for high-demand environments. With a frame diameter of 194 mm and a 30 mm magnet stack, this motor operates efficiently on 3-phase input at both 460 Volts AC and 380 Volts AC, achieving rated speeds of 3350 RPM and 2800 RPM, respectively. Equipped with a high-resolution multi-turn encoder and a powerful 140 pounds-per-inch holding brake, it ensures precise control and reliability. The motor features an IP67-rated enclosure and is designed to operate in temperatures up to 104 degrees Fahrenheit, highlighting its durability in challenging conditions. With an impressive power output of 9.6 kW, it offers a torque constant of 2.01 N-m, enhancing its performance capabilities. When integrated with the AM50 axis module, the motor can achieve a peak stall current of 33.2 Amps, while the AM75 module boosts performance to a peak current of 85.4 Amps, showcasing its adaptability for various applications.
