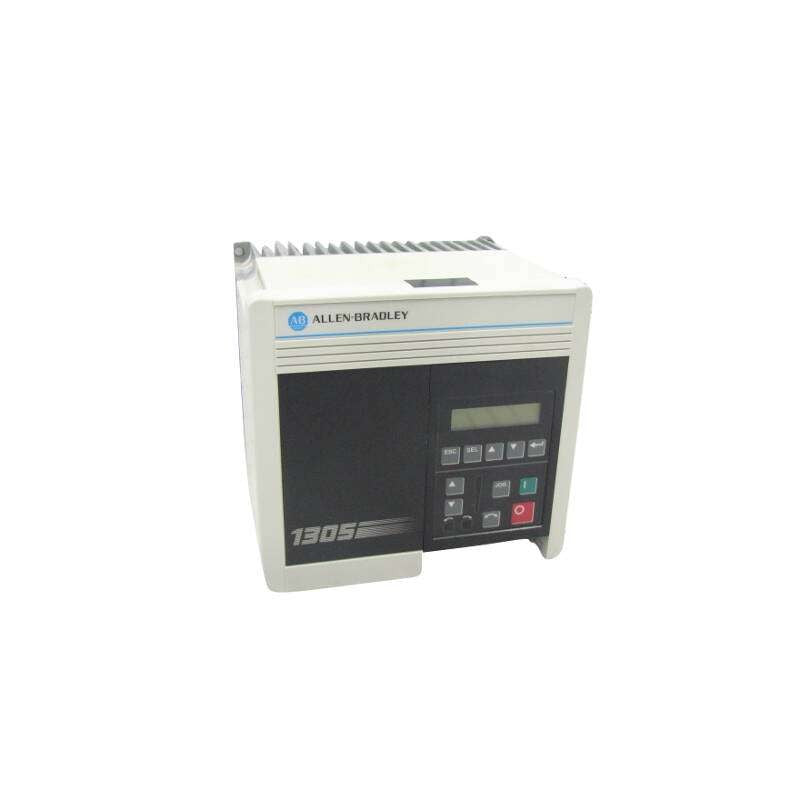

Allen-Bradley 1305-BA09A-HA1

The Allen Bradley 1305-BA09A-HA1 is a high-performance drive from the renowned 1305 AC Drive series, offering a nominal current rating of 9 A. This model features a human interface module equipped with an Analog Speed Potentiometer for straightforward operation. It operates efficiently within a three-phase voltage range of 380 to 460 volts and supports frequencies from 47 to 63 Hertz, achieving an impressive efficiency of 97.5% and a power factor of 0.8. The drive is housed in a robust NEMA 1 (IP30) enclosure, designed to withstand temperatures between 0 to 50 degrees Celsius and relative humidity levels up to 95% without condensation. With a vibration resistance of 1.0 G and compact dimensions of 210 x 195 x 179 millimeters, this drive delivers exceptional performance, including dynamic braking torque capabilities of 20% without an external resistor and up to 100% with one. It's an ideal solution for demanding industrial environments, ensuring reliable and efficient operations.
