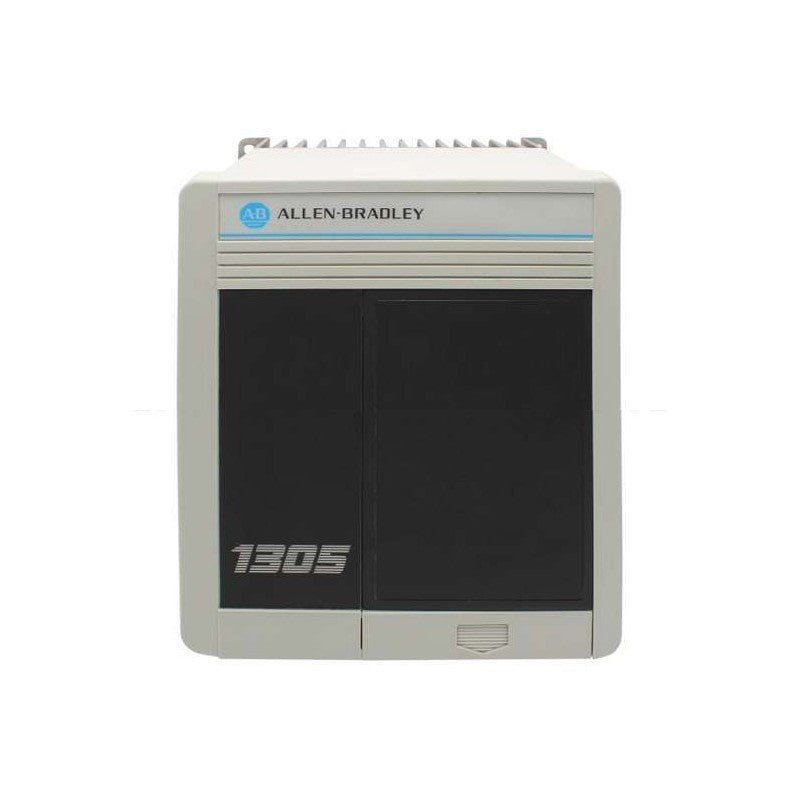

Allen-Bradley 1305-BA03A-HAP

The Allen Bradley 1305-BA03A-HAP, a component of the Bulletin 1305 AC drive series, is expertly engineered to offer exceptional motor protection and is compatible with Bulletin 1204 devices. This model features a programmer-only Human Interface Module that allows for precise local panel control. Designed to operate with a nominal current rating of A03, it functions efficiently within an input voltage range of 380 to 460 Volts (three-phase), providing adjustable output voltage and a 2.3A output current. The drive accommodates input frequencies from 50 to 60 Hertz and has a programmable output frequency of 0.00 to 400 Hertz, making it versatile for various applications. With a motor rating of 0.75 kW (1 horsepower) and the capability to handle an overload capacity of up to 200% for 60 seconds, it effectively manages dynamic braking torque with external resistors. Housed in a robust IP30 (NEMA 1) enclosure, this compact unit weighs 3.6 kg and measures 170 x 195 x 179/184.1 mm. It operates within a temperature range of 0 to 50 degrees Celsius and can withstand storage conditions from -40 to 70 degrees Celsius with a relative humidity of up to 95%.
