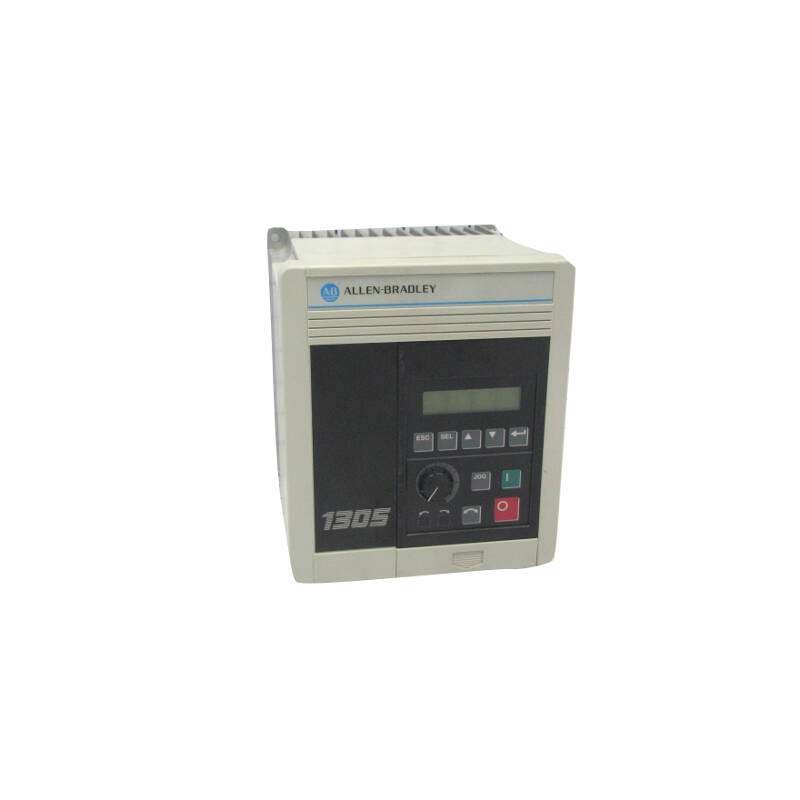

Allen-Bradley 1305-BA01A-HA1

The Allen Bradley 1305-BA01A-HA1, part of the Bulletin 1305 AC Drive series, is designed to efficiently operate three-phase AC induction motors within a voltage range of 380 to 460 volts. This compact drive supports power ratings of 0.37 kW (0.5 HP) and features an output current of 1.3A. With adjustable output voltage and programmable frequencies up to 400 Hz, it caters to a diverse range of applications while ensuring high efficiency at 97.5%. Its robust IP30 enclosure is built to withstand operating temperatures from 0 to 50 degrees Celsius, and its flexible input range allows for voltages between 340 to 500 volts at 47 to 63 Hz. The drive is equipped with configurable control inputs, supporting both 2 and 3 wire modes, and offers dynamic braking torque of up to 150% when paired with an external resistor. Measuring 170 x 195 x 179/184.1 mm and weighing 3.6 kg, it combines performance with versatility, making it an excellent addition to any industrial setting.
